  • 100W DESKTOP POWER SUPPLY

    100W DESKTOP POWER SUPPLY

    Size L128*W53.5*H35mm
    Input voltage 100-240VAC 50/60Hz 1.6A Max.
    Inrush current less than 60A,240Vac,25℃
    Leakage Current less than 0.25mA,at 264Vac
    Efficiency 85%,Min
    Output Voltage 12-48V DC Max100W
    Output Current 0.01~8A
    Output Mode 恒压(Constant Voltage)/恒流恒压(Constant Voltage &Constant Current)
    No load power consumption ≤0.21W,230VAC
    Ripple &Noise(max) ≤1%,240Vac
    Short circuit protection Short at DC and no damage
    Work temp.&humidity 0℃~40℃,5%~90%RH Non-Condensing (无凝露)
    Storage temp.&humidity -20℃~85℃ 5%-90%RH Non-Condensing (无凝露)
    Altiude Less than 2000m.
    Withstand Voltage AC3000V,1minute,10mA Max.
    Insulation Resistance Input to Output:>50MQ,at 500Vdc
    Safety standards UL/cUL,GS,PSE,CCC,CE,KC,RCM,FCC…etc


    EMC

    		 EMI:IEC/EN55032,IEC/EN55014-1 IEC/EN 55024,GB/T9254,GB/T13837 FCC

    VCCI EMS:IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5, IEC61000-4-6,IEC61000-4-11,etc.
    Color 黑白 (Black white)
    AC inlet type 八字尾梅花尾品字尾(C8C6C14)
    Conventional Models 12V7A、12V8A、12.6V7A、15V6A、24V3.75A、24V4A、20V5A、19V4.74A、48V2A,etc.
    Read moreDone
  • 126W DESKTOP POWER SUPPLY

    126W DESKTOP POWER SUPPLY

    Size L170*W70*H30.5mm
    Input voltage 100-240VAC 50/60Hz 2.5A Max.
    Inrush current less than 60A,240Vac,25℃
    Leakage Current less than 0.25mA,at 264Vac
    Efficiency 86%,Min
    Output Voltage 15-30V DC Max 126W
    Output Current 0.01～7A
    Output Mode 恒压(Constant Voltage)/恒流恒压(Constant Voltage &Constant Current)
    No load power consumption ≤0.21W,230VAC
    Ripple &Noise(max) ≤1%,240Vac
    Short circuit protection Short at DC and no damage
    Work temp.&humidity 0℃~40℃,5%~90%RH Non-Condensing (无凝露)
    Storage temp.&humidity -20℃~85℃ 5%-90%RH Non-Condensing (无凝露)
    Altiude Less than 5000m.
    Withstand Voltage AC3000V,1 minute,10mA Max.
    Insulation Resistance Input to Output:>50MQ,at 500Vdc
    Safety standards CCC,CE,FCC…etc.


    EMC

    		 EMI:IEC/EN55032,IEC/EN55014-1 IEC/EN 55024,GB/T9254,GB/T13837 FCC,

    VCCI EMS:IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5, IEC61000-4-6,IEC61000-4-11,etc
    Color 黑白 (Blackwhite)
    AC inlet type 八字尾梅花尾品字尾(C8C6C14)
    Conventional Models 15V7A、18V7A、24V5A、28V4.5A,etc.
    Read moreDone
  • 150W DESKTOP POWER SUPPLY

    150W DESKTOP POWER SUPPLY

    Size L171*W72*H33mm
    Input voltage 100-240VAC 50/60Hz 2.5A Max.
    Inrush current less than 80A,240Vac,25℃
    Leakage Current less than 0.25mA,at 264Vac
    Efficiency 86%,Min
    Output Voltage 12-54.6V DC Max 150W
    Output Current 0.01~12A
    Output Mode 恒压(Constant Voltage)/恒流恒压(Constant Voltage &Constant Current)
    No load power consumption ≤0.21W,230VAC
    Ripple &Noise(max) ≤1%,240Vac
    Short circuit protection Short at DC and no damage
    Work temp.&humidity 0℃~40℃,5%~90%RH Non-Condensing (无凝露)
    Storage temp.&humidity -20℃~85℃ 5%-90%RH Non-Condensing (无凝露)
    Altiude Less than 3000m.
    Withstand Voltage AC3000V,1 minute,10mA Max.
    Insulation Resistance Input to Output:>50MQ,at 500Vdc
    Safety standards UL/cUL,GS,PSE,CCC,CE,FCC,KC,RCM,…etc.


    EMC

    		 EMI:IEC/EN55032,IEC/EN55014-1 IEC/EN 55024,GB/T9254,GB/T13837 FCC

    VCCI EMS:IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5, IEC61000-4-6,IEC61000-4-11,etc
    Color 黑白 (Black white)
    AC inlet type 八字尾梅花尾品字尾(C8C6C14)
    Conventional Models 12V10A、15V10A、18V8.0A、19V7.8A、24V6A、29.4V5A、48V3.0A,etc.
    Read moreDone
  • 180W DESKTOP POWER SUPPLY

    180W DESKTOP POWER SUPPLY

    Size L171*W72*H33mm
    Input voltage 100-240VAC 50/60Hz 2.5A Max.
    Inrush current less than 80A,240Vac,25℃
    Leakage Current less than 0.25mA,at 264Vac
    Efficiency 86%,Min
    Output Voltage 12-58.8V DC Max 180W
    Output Current 0.01～12A
    Output Mode 恒压(Constant Voltage)/恒流恒压(Constant Voltage &Constant Current)
    No load power consumption ≤0.21W,230VAC
    Ripple &Noise(max) ≤1%,240Vac
    Short circuit protection Short at DC and no damage
    Work temp.&humidity 0℃~40℃,5%~90%RH Non-Condensing (无凝露)
    Storage temp.&humidity -20℃~85℃ 5%-90%RH Non-Condensing (无凝露)
    Altiude Less than 5000m.
    Withstand Voltage AC3000V,1 minute,10mA Max.
    Insulation Resistance Input to Output:>50MQ,at 500Vdc
    Safety standards UL/cUL,GS,PSE,CCC,CE,FCC,KC,RCM,…etc.


    EMC

    		 EMI:IEC/EN55032,IEC/EN55014-1 IEC/EN 55024,GB/T9254,GB/T13837 FCC,

    VCCI EMS:IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5, IEC61000-4-6,IEC61000-4-11,etc
    Color 黑白 (Blackwhite)
    AC inlet type 八字尾梅花尾品字尾(C8C6C14)
    Conventional Models 12V12A、18V10A、24V7.5A、29.4V6A、48V3.75A,etc.
    Read moreDone
  • 250W DESKTOP POWER SUPPLY

    250W DESKTOP POWER SUPPLY

    Size L179*W84*H33mm
    Input voltage 100-240VAC 50/60Hz 3.5A Max.
    Inrush current less than 100A,240Vac,25℃
    Leakage Current less than 0.25mA,at 264Vac
    Efficiency 86%,Min
    Output Voltage 12-54.6V DC Max 250W
    Output Current 0.01~20A
    Output Mode 恒压(Constant Voltage)/恒流恒压(Constant Voltage &Constant Current)
    No load power consumption ≤0.21W,230VAC
    Ripple &Noise(max) ≤1%,240Vac
    Short circuit protection Short at DC and no damage
    Work temp.&humidity 0℃~40℃,5%~90%RH Non-Condensing (无凝露)
    Storage temp.&humidity -20℃~85℃ 5%-90%RH Non-Condensing (无凝露)
    Altiude Less than 3000m.
    Withstand Voltage AC3000V,1 minute,10mA Max.
    Insulation Resistance Input to Output:>50MQ,at 500Vdc
    Safety standards UL/cUL,GS,PSE,CCC,CE,KC,RCM,…etc.


    EMC

    		 EMI:IEC/EN55032,IEC/EN55014-1 IEC/EN 55024,GB/T9254,GB/T13837 FCC,

    VCCI EMS:IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5, IEC61000-4-6,IEC61000-4-11,etc.
    Color 黑白 (Black white)
    AC inlet type 八字尾梅花尾品字尾(C8C6C14)
    Conventional Models 12V20A、15V16A、16.8V14.8A、24V7.5A、24V10A、29.4V8A,48V5A、54.6V4.5A,etc.
    Read moreDone
  • 36W系列适配器(直插式)

    36W系列适配器(直插式)

    尺寸 L60mm xW60mmxH30.5mm  (not include input Plug)
    输入电压 100-240VAC 50/60Hz 1.0A Max.
    浪涌电流 less than 50A,240Vac,25℃
    泄露电流 less than 0.25mA,at 264Vac
    效率 85%,Min
    输出电压 5-30V DC Max 48W
    输出电流 0.01~5A
    输出方式 恒压/Constant Voltage
    待机功耗 ≤0.1W,230VAC
    纹波与噪声 ≤1%,240Vac
    短路保护 Short at DC and no damage
    工作温湿度范围 0℃~40℃,5%~90%RH Non-Condensing (无凝露)
    库存温湿度范围 -20℃~85℃ 5%-90%RH Non-Condensing (无凝露)
    海拔高度 Less than 2000m
    绝缘耐压 AC3000V,1 minute,10mA Max.
    绝缘电压 Input to Output:>50MQ,at 500Vdc
    安规标准 GS,ETL/CETL,CCC,CE,FCC…etc


    电磁兼容标准

    		 EMI:IEC/EN55032,IEC/EN55014-1 IEC/EN 55024,GB/T9254,GB/T13837 FCC,

    VCCI EMS:IEC61000-4-2,IEC61000-4-3IEC61000-4-4,IEC61000-4-5, IEC61000-4-6,IEC61000-4-11,etc
    颜色 黑\白 (Black\white)
    常规型号 12V3A、12V4A、15V2A、15V3A、19V2A、19V2.5A、24V1A、24V1.5A、24V2A,etc.
    Read moreDone

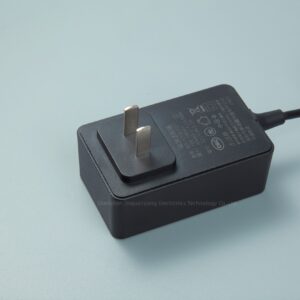

  • 48W POWER SUPPLY

    48W POWER SUPPLY

    Size L76*W46.2*H27mm(not incude input Plug)/L94*W47*H29mm
    Input voltage 100-240VAC 50/60Hz 1.0A Max.
    Inrush current less than 50A,240Vac,25℃
    Leakage Current less than 0.25mA,at 264Vac
    Efficiency 85%,Min
    Output Voltage 5-48V DC Max 48W
    Output Current 0.01~5A
    Output Mode 恒压/Constant Voltage
    No load power consumption ≤0.1W,230VAC
    Ripple &Noise(max) ≤1%,240Vac
    Short circuit protection Short at DC and no damage
    Work temp.&humidity 0℃~40℃,5%~90%RH Non-Condensing (无凝露)
    Storage temp.&humidity -20℃~85℃ 5%-90%RH Non-Condensing (无凝露)
    Altiude Less than 2000m
    Withstand Voltage AC3000V,1 minute,10mA Max.
    Insulation Resistance Input to Output:>50MQ,at 500Vdc
    Safety standards UL/CUL,GS,ETL/CETL,PSE,CCC,CQC,CE,FCC,KC,RCM


    EMC

    		 EMI:IEC/EN55032,IEC/EN55014-1 IEC/EN 55024,GB/T9254,GB/T13837 FCC,

    VCCI EMS:IEC61000-4-2,IEC61000-4-3IEC61000-4-4,IEC61000-4-5, IEC61000-4-6,IEC61000-4-11,etc
    Color 黑白 (Black white)
    Conventional Models 12V3A、12V4A、15V2A、15V3A、19V2A、19V2.5A、24VIA、24V1.5A、24V2A,etc.
    Read moreDone
  • 65W DIRECT PLUG POWER SUPPLY

    65W DIRECT PLUG POWER SUPPLY

    Size L60*W60*H30.5mm(not incude input Plug)
    Input voltage 100-240VAC 50/60Hz 1.5A Max.
    Inrush current less than 50A,240Vac,25℃
    Leakage Current less than 0.25mA,at 264Vac
    Efficiency 85%,Min
    Output Voltage 5-48V DC Max 65W
    Output Current 0.01~6A
    Output Mode 恒压/Constant Voltage
    No load power consumption ≤0.1W,230VAC
    Ripple &Noise(max) ≤1%,240Vac
    Short circuit protection Short at DC and no damage
    Work temp.&humidity 0℃~40℃,5%~90%RH Non-Condensing (无凝露)
    Storage temp.&humidity -20℃~85℃ 5%-90%RH Non-Condensing (无凝露)
    Altiude Less than 2000m.
    Withstand Voltage AC3000V,1 minute,10mA Max
    Insulation Resistance Input to Output:>50MQ,at 500Vdc
    Safety standards GS,ETL/CETL,CCC,CE,FCC,…etc.


    EMC

    		 EMI:IEC/EN55032,IEC/EN55014-1 IEC/EN 55024,GB/T9254,GB/T13837 FCC,

    VCCI EMS:IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5, IEC61000-4-6,IEC61000-4-11,etc
    Color 黑白 (Blackwhite)
    Conventional Models 12V4A、12V5A、15V4A、19V3.0A、19V3.42A、24V2.5A、24V2.7A、48V1.35A、etc.
    Read moreDone
  • 72W DESKTOP POWER SUPPLY

    72W DESKTOP POWER SUPPLY

    Size L116*W53.2*H30.5mm
    Input voltage 100-240VAC 50/60Hz 1.6A Max.
    Inrush current less than 60A,240Vac,25℃
    Leakage Current less than 0.25mA,at 264Vac
    Efficiency 85%,Min
    Output Voltage 5-48V DC Max 72W
    Output Current 0.01～8A
    Output Mode 恒压(Constant Voltage)/恒流恒压(Constant Voltage &Constant Current)
    No load power consumption ≤0.21W,230VAC
    Ripple &Noise(max) ≤1%,240Vac
    Short circuit protection Short at DC and no damage
    Work temp.&humidity 0℃~40℃,5%~90%RH Non-Condensing (无凝露)
    Storage temp.&humidity -20℃~85℃ 5%-90%RH Non-Condensing (无凝露)
    Altiude Less than 2000m.
    Withstand Voltage AC3000V,1 minute,10mA Max.
    Insulation Resistance Input to Output:>50MQ,at 500Vdc
    Safety standards UL/cUL,GS,PSE,CCC,CQC,ETL/cETL CE,FCC,KC,RCM,…etc.


    EMC

    		 EMI:IEC/EN55032,IEC/EN55014-1 IEC/EN 55024,GB/T9254,GB/T13837 FCC,

    VCCI EMS:IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5, IEC61000-4-6,IEC61000-4-11,etc
    Color 黑白 (Black white)
    AC inlet type 八字尾梅花尾品字尾(C8C6C14)
    Conventional Models 12V4A、12V5A、12V6A、15V4A、15V4.8A、12.6V5A、16.8V4A、18.0V4A、19.0V3.75A、 24V2.5A、24V3A、42V1.7A 48V1.5A,etc.
    Read moreDone
  • CUSTOM POWER SUPPLY

    CUSTOM POWER SUPPLY

    Our   company   can   provide   customized   services   according   to   customer   requirements,such   as   the

    development   of   bare   board power    supply,switching      power     supply,intelligent     power     supply,control board    products,etc.
