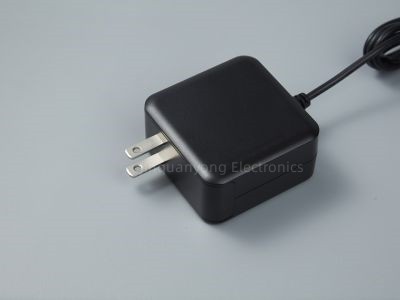

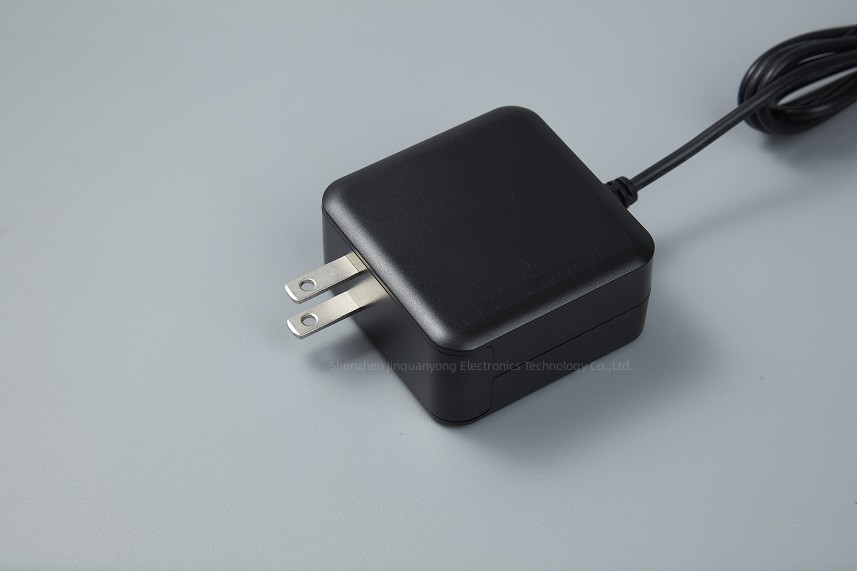

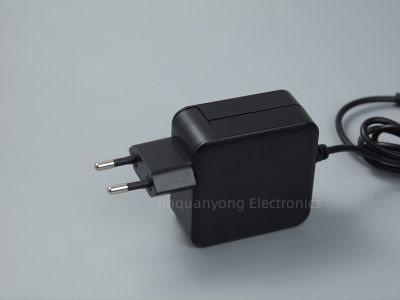

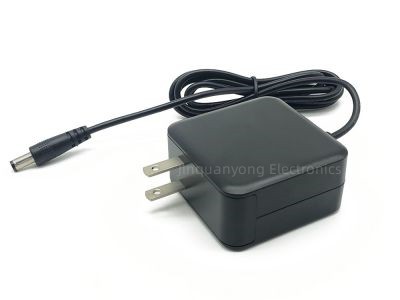

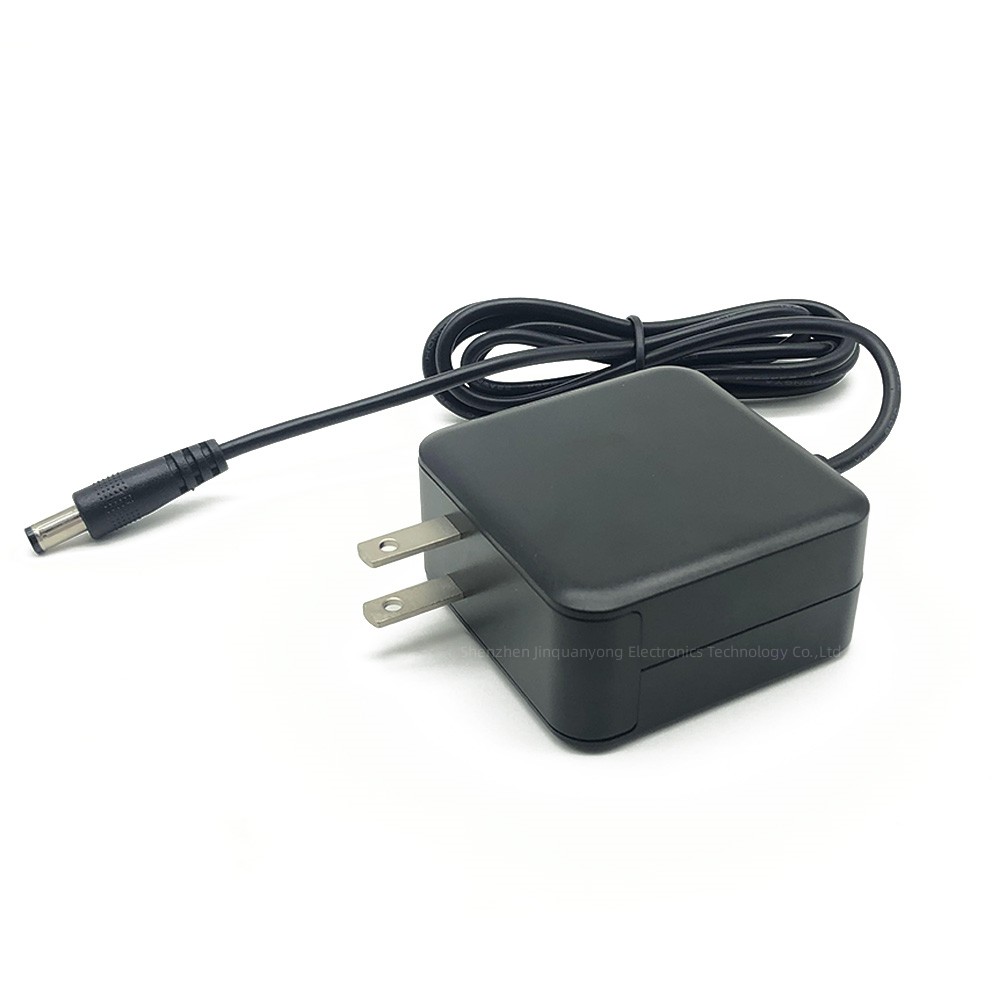

36W系列适配器(直插式)
| 尺寸 | L60mm xW60mmxH30.5mm (not include input Plug) |
| 输入电压 | 100-240VAC 50/60Hz 1.0A Max. |
| 浪涌电流 | less than 50A,240Vac,25℃ |
| 泄露电流 | less than 0.25mA,at 264Vac |
| 效率 | 85%,Min |
| 输出电压 | 5-30V DC Max 48W |
| 输出电流 | 0.01~5A |
| 输出方式 | 恒压/Constant Voltage |
| 待机功耗 | ≤0.1W,230VAC |
| 纹波与噪声 | ≤1%,240Vac |
| 短路保护 | Short at DC and no damage |
| 工作温湿度范围 | 0℃~40℃,5%~90%RH Non-Condensing (无凝露) |
| 库存温湿度范围 | -20℃~85℃ 5%-90%RH Non-Condensing (无凝露) |
| 海拔高度 | Less than 2000m |
| 绝缘耐压 | AC3000V,1 minute,10mA Max. |
| 绝缘电压 | Input to Output:>50MQ,at 500Vdc |
| 安规标准 | GS,ETL/CETL,CCC,CE,FCC…etc |
|
电磁兼容标准 |
EMI:IEC/EN55032,IEC/EN55014-1 IEC/EN 55024,GB/T9254,GB/T13837 FCC,
VCCI EMS:IEC61000-4-2,IEC61000-4-3IEC61000-4-4,IEC61000-4-5, IEC61000-4-6,IEC61000-4-11,etc |
| 颜色 | 黑\白 (Black\white) |
| 常规型号 | 12V3A、12V4A、15V2A、15V3A、19V2A、19V2.5A、24V1A、24V1.5A、24V2A,etc. |
