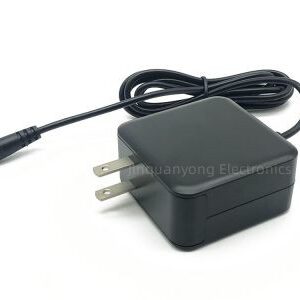

| 尺寸 |
L60mm xW60mmxH30.5mm (not include input Plug) |
| 输入电压 |
100-240VAC 50/60Hz 1.0A Max. |
| 浪涌电流 |
less than 50A,240Vac,25℃ |
| 泄露电流 |
less than 0.25mA,at 264Vac |
| 效率 |
85%,Min |
| 输出电压 |
5-30V DC Max 48W |
| 输出电流 |
0.01~5A |
| 输出方式 |
恒压/Constant Voltage |
| 待机功耗 |
≤0.1W,230VAC |
| 纹波与噪声 |
≤1%,240Vac |
| 短路保护 |
Short at DC and no damage |
| 工作温湿度范围 |
0℃~40℃,5%~90%RH Non-Condensing (无凝露) |
| 库存温湿度范围 |
-20℃~85℃ 5%-90%RH Non-Condensing (无凝露) |
| 海拔高度 |
Less than 2000m |
| 绝缘耐压 |
AC3000V,1 minute,10mA Max. |
| 绝缘电压 |
Input to Output:>50MQ,at 500Vdc |
| 安规标准 |
GS,ETL/CETL,CCC,CE,FCC…etc |
|
电磁兼容标准 |
EMI:IEC/EN55032,IEC/EN55014-1 IEC/EN 55024,GB/T9254,GB/T13837 FCC,
VCCI EMS:IEC61000-4-2,IEC61000-4-3IEC61000-4-4,IEC61000-4-5, IEC61000-4-6,IEC61000-4-11,etc |
| 颜色 |
黑\白 (Black\white) |
| 常规型号 |
12V3A、12V4A、15V2A、15V3A、19V2A、19V2.5A、24V1A、24V1.5A、24V2A,etc. |
-

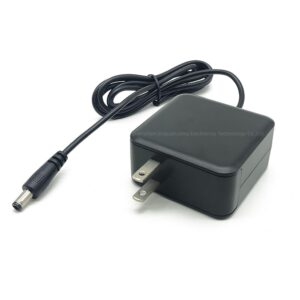

| Size |
L60*W60*H30.5mm(not incude input Plug) |
| Input voltage |
100-240VAC 50/60Hz 1.5A Max. |
| Inrush current |
less than 50A,240Vac,25℃ |
| Leakage Current |
less than 0.25mA,at 264Vac |
| Efficiency |
85%,Min |
| Output Voltage |
5-48V DC Max 65W |
| Output Current |
0.01~6A |
| Output Mode |
恒压/Constant Voltage |
| No load power consumption |
≤0.1W,230VAC |
| Ripple &Noise(max) |
≤1%,240Vac |
| Short circuit protection |
Short at DC and no damage |
| Work temp.&humidity |
0℃~40℃,5%~90%RH Non-Condensing (无凝露) |
| Storage temp.&humidity |
-20℃~85℃ 5%-90%RH Non-Condensing (无凝露) |
| Altiude |
Less than 2000m. |
| Withstand Voltage |
AC3000V,1 minute,10mA Max |
| Insulation Resistance |
Input to Output:>50MQ,at 500Vdc |
| Safety standards |
GS,ETL/CETL,CCC,CE,FCC,…etc. |
|
EMC |
EMI:IEC/EN55032,IEC/EN55014-1 IEC/EN 55024,GB/T9254,GB/T13837 FCC,
VCCI EMS:IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5, IEC61000-4-6,IEC61000-4-11,etc |
| Color |
黑白 (Blackwhite) |
| Conventional Models |
12V4A、12V5A、15V4A、19V3.0A、19V3.42A、24V2.5A、24V2.7A、48V1.35A、etc. |
